CCWDM 模块 4CH 工业级
Features
Telcordia GR-1221 and GR-1209 Compliance
Compact size
Low insertion loss
Excellent temperature stability
Applications
Broadband Systems
Optical Add/Drop Multiplexing
Metro/Access Communication Networks
Fiber Optic Instruments

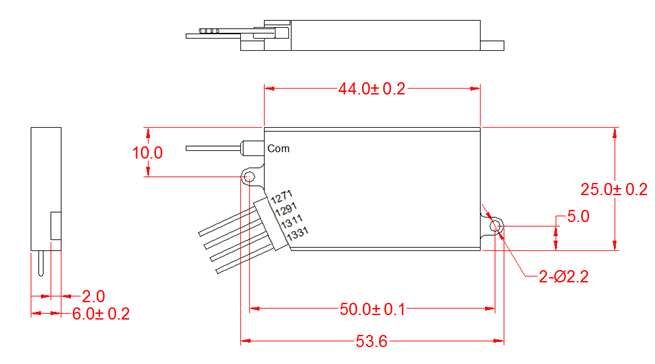

Dimension(mm) 44(L)×25(W)×6(H)
Order Information: HC-CCWDM-A-B-C-D-E
|
A |
B |
C |
D |
E |
|
Number of Channel |
1st Channel |
Fiber Type |
Fiber Length |
In/Out Connector |
|
04=4 Channel SS=special |
27=1271nm …… 47=1471nm 49=1491nm …… 61=1611nm SS=special |
1=Bare fiber 2=900um loose tube |
1=1m 2=2m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
|
Parameter |
Unit |
Spec |
|
|
Channel Spacing |
nm |
20 |
|
|
Central Wavelength |
nm |
1270~1610/1271~1611 |
|
|
Operating Wavelength Range |
nm |
1260～1620 |
|
|
Channel Bandwidth＠0.5dB |
nm |
+/-6.5 |
|
|
Number of Channel |
— |
4 |
|
|
CWDM Channel Insertion Loss |
dB |
< 1.2 |
|
|
EXP Insertion loss(optional) |
dB |
< 1.2 |
|
|
Ripple |
dB |
<0.5 |
|
|
Adjacent Channel Isolation |
dB |
> 30 |
|
|
Non-adjacent Channel Isolation |
dB |
> 40 |
|
|
EXP Isolation(optional) |
dB |
> 15 |
|
|
PDL |
dB |
< 0.2 |
|
|
RL |
dB |
> 45 |
|
|
Directivity |
dB |
> 50 |
|
|
Power Handling |
mW |
< 300 |
|
|
Operating Temperature |
℃ |
-40~+85 |
|
|
Storage Temperature |
℃ |
-40～+85 |
|
|
Fiber Type |
— |
SMF-28e |
|
|
Connector Type |
— |
Customer Specify |
|
|
Dimensions |
mm |
44(L)×25(W)×6(H) |
|
1. All specifications include the effect of operating temperature and all states of polarization.
2. Values referenced without connectors and insertion loss for a connector-pair is 0.20dB (typ.) and 0.30dB (max.).
