CCWDM 模块 18CH
Features
Low Insertion Loss
Low PDL
High Isolation
Excellent Enviroment Reliability
Applications
WDM System
MAN
CATV System

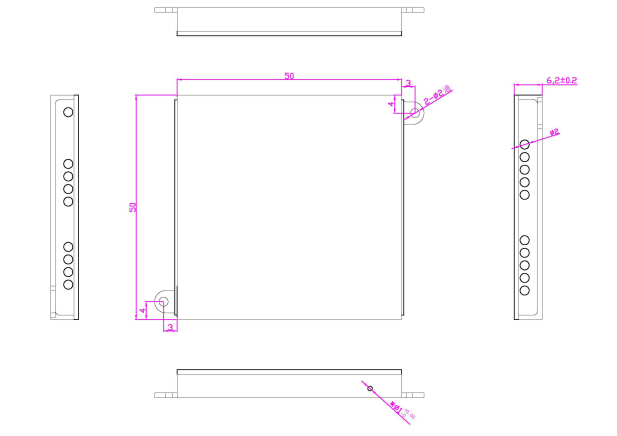

Dimension(mm) :L50x W50 x H6.2
Order Information: HC-18CH-MINI CWDM-A-B-C-D-E
|
Number of Channels |
1st Channel |
Configuration |
Fiber Type |
Fiber Length |
Connector |
|
|
A |
B |
C |
D |
E |
|
18 Channel
|
27=1270nm …… 47=1470nm …… 61=1610nm |
M=Mux D=Demux
|
1=Bare fiber 2=900um loose tube 3=2mm Cable 4=3mm Cable |
1=1m 2=2m S=Specify |
0=None 1=SC/APC 2=SC/PC 3=LC S=Specify |
|
Parameter |
HC-18CH-MINI CWDM |
|
|
Center Wavelength （nm） |
1270-1610nm |
|
|
Channel Passband (nm) |
CW±6.5 |
|
|
Insertion Loss (dB) |
≤3.0 |
|
|
Isolation (dB) |
Adjacent |
≥30 |
|
Non-adjacent |
||
|
Polarization Dependent Loss (dB) |
<0.2 |
|
|
Polarization Mode Dispersion (ps) |
<0.2 |
|
|
Directivity (dB) |
≥50 |
|
|
Return Loss (dB) |
≥45 |
|
|
Maximum Power Handling (mW) |
300 |
|
|
Operating Temperature (℃) |
-10~+70 |
|
|
Storage Temperature (℃) |
-40~+85 |
|
|
Package Dimension (mm) |
L50x W50 x H6.2 |
|
Above specification are for device without connector.
Add an addotional 0.2dB loss per connector.
