矩阵光开关MEMS N×M模块
Features
Modular Design
Non-Blocking Switching
“any-to-any” switch
High Reliability and stability
Application
OADM
OXC
Data Center
Instrumentation
Compliance
Telcordia GR-1221
Telcordia GR-1073

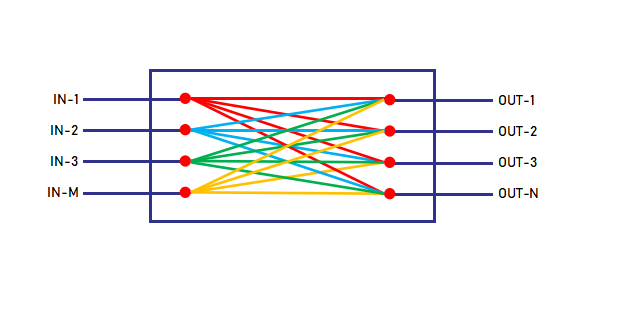

Optical Route
Dimension

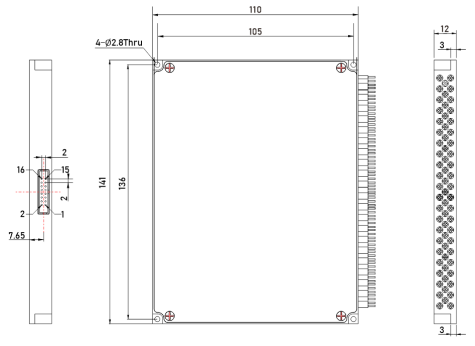

M5:110×141×12mm
M6:320×200×18mm
M7:320×240×30mm
Ordering Information: MEMS M×N-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Mode |
Wavelength |
Dimension |
Fiber Type |
Fiber Dimension |
Fiber Length |
Connector |
|
SM:Single Mode |
85:850nm |
1:M5 |
5:50/125 |
025:Φ0.25mm |
05:0.5m |
00: None |
|
MM:Multi-Mode |
13:1310nm |
2:M6 |
6:62.5/125 |
09:Φ0.9mm |
10:1.0m |
FP: FC/UPC |
|
|
14:1490nm |
3: M7 |
9:9/125 |
X:other |
15:1.5m |
FA: FC/APC |
|
|
15:1550nm |
X:other |
X:other |
|
X:other |
SP: SC/UPC |
|
|
162:1625nm |
|
|
|
|
SA: SC/APC |
|
|
165:1650nm |
|
|
|
|
LP: LC/UPC |
|
|
13/15: 1310/1550nm |
|
|
|
|
MP:MPO |
|
|
X:other |
|
|
|
|
X:other |
Single Mode
|
Parameters |
Unit |
MEMS M×N-SM |
|
|
Working Wavelength |
nm |
1260-1650 |
|
|
Testing Wavelength |
nm |
1310/1550/1625/1650 |
|
|
Insertion Loss |
dB |
@CWL Single-band ≤1.6 (M≤8, N≤8) ≤2.0 (M≤16, N≤16) ≤2.6 (M≤32, N≤32) ≤3.0 (M≤64, N≤64) |
@CWL Dual-band ≤2.0 (M≤8, N≤8) ≤2.4 (M≤16, N≤16) ≤3.0 (M≤32, N≤32) ≤3.4 (M≤64, N≤64) |
|
WDL |
dB |
≤0.6 |
|
|
PDL |
dB |
≤0.3 |
|
|
Return Loss |
dB |
≥45 |
|
|
Crosstalk |
dB |
≥50 |
|
|
Repeatability |
dB |
≤±0.1 |
|
|
Switching Time |
ms |
≤10 |
|
|
Durability |
times |
≥109 |
|
|
Input Optical Power |
mW |
≤500 |
|
|
Operating Voltage |
V |
DC 5V±10% |
|
|
Operating Current |
A |
≤0.5 (M+N≤16) ≤0.8 (M+N≤32) ≤2.0 (M+N≤64) ≤4.0 (M+N≤128) |
|
|
Operating Temp. |
°C |
-5 ~ +75 |
|
|
Storage Temp. |
°C |
-40 ~ +85 |
|
|
Dimension |
mm |
M5: 110×141×12mm (M+N≤16) M6: 320×200×18mm (M+N≤48) M7: 320×240×30mm (M+N≤64) customization：64 |
|
|
1.Within operating temperature and all SOP. 2.Excluding connector. 3.WDL is measured in a ±20nm range at 23°C. |
|||
Multi-Mode
|
Parameters |
Unit |
MEMS M×N-MM |
|
|
Working Wavelength |
nm |
850±30, 1310±30 |
|
|
Testing Wavelength |
nm |
850/1310 |
|
|
Insertion Loss |
dB |
@CWL Single-band ≤1.6 (M≤12, N≤12) ≤2.0 (M≤16, N≤16) |
@CWL Dual-band ≤2.0 (M≤12, N≤12) ≤2.4 (M≤16, N≤16) |
|
WDL |
dB |
≤0.6 |
|
|
PDL |
dB |
≤0.4 |
|
|
Return Loss |
dB |
≥30 |
|
|
Crosstalk |
dB |
≥30 |
|
|
Repeatability |
dB |
≤±0.1 |
|
|
Switching Time |
ms |
≤15 |
|
|
Durability |
times |
≥109 |
|
|
Input Optical Power |
mW |
≤500 |
|
|
Operating Voltage |
V |
DC 5V±10% |
|
|
Operating Current |
A |
≤0.5 (M+N≤16) ≤0.8 (M+N≤32) |
|
|
Operating Temp. |
°C |
-5 ~ +70 |
|
|
Storage Temp. |
°C |
-40 ~ +85 |
|
|
Dimension |
mm |
M5: 110×141×12mm (M+N≤16) M6: 320×200×18mm (M+N≤32) customization：32 |
|
|
1.Within operating temperature and all SOP. 2.Excluding connector. 3.WDL is measured in a ±20nm range at 23°C. |
|||
Pin Configurations
|
Pin# |
Signal name |
Type |
Description |
|
1 |
NC |
|
|
|
2 |
NC |
|
|
|
3 |
VCC |
Power |
Power supply，DC 5V，1.0A |
|
4 |
NC |
|
|
|
5 |
NC |
|
|
|
6 |
GND |
Power |
GND |
|
7 |
NC |
|
|
|
8 |
NC |
|
|
|
9 |
TXD |
Output |
RS232 TX（3.3V TTL） |
|
10 |
RXD |
Input |
RS232 RX（3.3V TTL） |
|
11 |
NC |
|
|
|
12 |
NC |
|
|
|
13 |
NC |
|
|
|
14 |
NC |
|
|
|
15 |
NC |
|
|
|
16 |
NC |
|
|
Note: The electrical interfaces of M5, M6 and M7 modules should use MOLEX's 87833-1620, and the customer connectors should use MOLEX's 87568-1694.
