光分路器 保偏PLC
产品特点
低插入损耗
偏振不敏感
高稳定性和可靠性
应用范围
光纤到户
无源光网络（E/GPON）
移动、电信网络
局域网，城域网
有线电视网络
测试设备

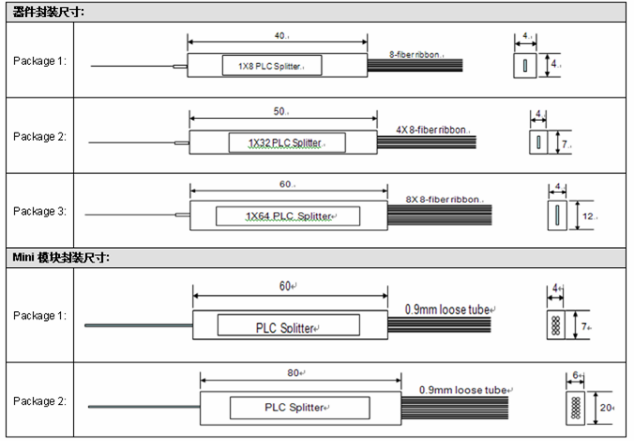

Package box dimension
|
Item |
1X2 |
1X3 |
1X4 |
1X6 |
1X8 |
1X12 |
1X16 |
1X24 |
1X32 |
1X64 |
|
（L*W*H） |
40*4*4 |
50*7*4 |
60*7*4 |
|||||||
|
（L*W*H） |
60*7*4 |
60*12*4 |
80*20*6 |
|||||||
|
（L*W*H） |
100*80*10 |
120*80*18 |
141*115*18 |
|||||||
产品尺寸
订购信息 HC-PMPLC-1×N-A-B-C-D-E-F-G
|
|
A |
B |
C |
D |
E |
F |
G |
|
PMPLC |
Wavelength range |
ports |
Fiber Type |
Package Type |
Pigtail Type |
Length |
Connector |
|
|
1310=1310nm 1550=1550nm S= Special
|
0102=1x2 0104=1x4 0108=1x8 0116=1x16 0132=1x32 0164=1x64
|
1=PM1310 2=PM1550
|
A=裸纤 B=微型 C=盒式 D=插片式 E=托盘式 F=机架式 S=Special |
0=裸光纤 1=900um松套管 2=900um紧套管 3=2.0mm光纤 4=3.0mm光纤 |
0=0.5m 1=1m 2=1.5m 3=2m 4=3m 5=4m S=special |
0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST/PC 6=LC/PC 7=LC/APC 8=E2000 S=Special |
|
Parameters |
1×2 |
1×3 |
1×4 |
1×6 |
1×8 |
1×12 |
1×16 |
1×24 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1310 or 1550 or Special |
|||||||||
|
Insertion Loss (dB)（Typical） |
≤3.8 |
≤6.2 |
≤7 |
≤9.4 |
≤10.2 |
≤12.6 |
≤13.5 |
≤15.8 |
≤16.6 |
≤21 |
|
Insertion Loss (dB)（max） |
≤4.0 |
≤6.5 |
≤7.3 |
≤9.7 |
≤10.5 |
≤13 |
≤14 |
≤16 |
≤17 |
≤21.5 |
|
Loss Uniformity (dB) |
≤0.3 |
≤0.5 |
≤0.5 |
≤0.6 |
≤0.5 |
≤0.8 |
≤0.8 |
≤1.2 |
≤1.0 |
≤1.5 |
|
ER (dB) |
≥20 |
≥20 |
≥20 |
≥20 |
≥20 |
≥20 |
≥18 |
≥18 |
≥18 |
≥18 |
|
Return Loss (dB) |
≥50 |
|||||||||
|
Directivity (dB) Min |
≥50 |
|||||||||
|
Fiber Type |
PM1310 or PM1550 or Special |
|||||||||
|
Operating Temperature (℃) |
-5～70 |
|||||||||
|
Storage Temperature (℃) |
-40～85 |
|||||||||
|
Maximum Power Handling (mW) |
500 |
|||||||||
|
Package Dimensions(mm) |
Special |
|||||||||
*Above specifications are for devices without the connectors.
*For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.
