高功率环形器
Features
Low Insertion Loss
Wide Band High Isolation
Low PDL
Compact In-Line Package
High Stability and Reliability
Epoxy-free on Optical Path
Applications
Optical Amplifier
Metro Area Network
Wavelength Add/Drop
Dispersion Compensation
Bi-Direcation Communication

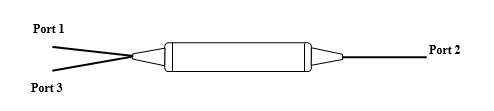

Dimension (Unit:mm)
Ordering Information HC－CIR－A－B－C－D－E－F
|
CIR |
A |
B |
C |
D |
E |
F |
|
|
Port |
Wavlength |
Grade |
Fiber Type |
Fiber Length |
In/Out Connector |
|
3=3 Port |
15=1550nm |
P=P Grade |
0=Bare fiber 90=900um loose tube |
1=1m 2=2m
|
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
|
Parameter |
P Grade |
|
|
Configuration |
Port 1 to Port 2 to Port 3 |
|
|
Operation Wavelength (nm) |
1550 |
|
|
Insertion Loss (dB) |
Typical |
0.8 |
|
Maximum |
1.0 |
|
|
Typical Isolation (dB) |
≥45 |
|
|
Minimum Isolation (dB) |
≥40 |
|
|
Cross Talk (dB) |
≥50 |
|
|
Polarization Dependent Loss (dB) |
<0.15 |
|
|
Polarization Mode Dispersion |
<0.1 |
|
|
Return Loss（dB） |
≥50 |
|
|
Power Handling (mW) |
2000 |
|
|
Opterating Temperature (℃) |
-10~+75 |
|
|
Package dimension (mm) |
Φ5.5xL50 |
|
