AWG 模块 50G/96CH
Features
Low Insertion Loss
Wide pass band
Low PDL
High Stability and reliability
High Channel Isolation
Applications
WDM Network
Telecommunication
Access Network
Ordering Information: HC-AWG-A-B-C-D-E-F-G-H-J
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
|
Type |
Band |
Number of Channels |
Spacing |
1st Channel |
Chip Type |
Package |
Fiber Length(Total Length) |
In/Out Connector |
|
AAWG=Athermal AWG |
C=C-Band |
16=16-CH |
1=100G |
C62=C62 |
G= Gaussian |
M=Module |
1=0.5m |
0=None |
|
|
L=L-Band |
32=32-CH |
2=200G |
H61=H61 |
F=Flat Top |
R=Rack |
2=1m |
1=FC/APC |
|
|
D=C+L-Band |
40=40-CH |
5=50G |
C60=C60 |
|
X=Special |
3=1.5m |
2=FC/PC |
|
|
X=Customize |
48=48-CH |
X=Special |
H59=H59 |
|
|
4=2m |
3=SC/APC |
|
|
|
96=96-CH |
|
X=special |
|
|
X=Specify |
4=SC/PC |
|
|
|
X=Special |
|
|
|
|
|
5=LC/APC |
|
|
|
|
|
|
|
|
|
6=LC/PC |
|
|
|
|
|
|
|
|
|
7=ST/UPC |
|
|
|
|
|
|
|
|
|
X=Specify |
Note: Typical channel plan: ITU wavelengths 50G H13(1566.72nm)-C61(1528.77nm).
Technical parameter
Absolute Maximum Ratings
|
Parameter |
Conditions |
Specifications |
Unit |
|
|
Min. |
Max. |
|||
|
Operating Temperature |
Non-Condensing Environment |
-5 |
65 |
oC |
|
Operating Humidity |
|
5 |
85 |
%RH |
|
Storage Temperature |
Device Not Powered on Heater Element |
-40 |
85 |
oC |
|
Storage Humidity |
Device Not Powered on Heater Element |
5 |
95 |
%RH |
Optical Specifications
|
Parameters
|
Condition |
Specs |
Units |
||
|
MIN. |
Typ. |
MAX |
|
||
|
Number of Channels |
96 |
96 |
CH |
||
|
Number Channel Spacing |
50GHz |
50 |
GHz |
||
|
Center Wavelength |
ITU frequency, measured in vacuum. |
C-band |
nm |
||
|
Clear Channel Passband |
Centered at each ITU channel frequency |
±6.25 |
GHz |
||
|
Wavelength Stability |
Maximum range of the wavelength error of all channels and temperatures in average polarization. |
±0.05 |
nm |
||
|
-1dB Channel Bandwidth |
Clear channel bandwidth defined by passband shape. For each Channel. |
0.20 |
|
|
nm |
|
-3dB Channel Bandwidth |
Clear channel bandwidth defined by passband shape. For each channel. |
0.28 |
|
|
nm |
|
Optical Insertion Loss at ITU grid |
Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations with connectors. |
|
|
12.0 |
dB |
|
Adjacent Channel Isolation |
Ratio of peak transmission to the maximum transmission over both adjacent ITU wavelengths |
25 |
|
|
dB |
|
Non-Adjacent, Channel Isolation |
Ratio of peak transmission in channel passband to the maximum transmission over all non-adjacent ITU wavelength
|
30 |
|
|
dB |
|
Total Crosstalk |
Ratio of power in channel to power in all other ITU wavelength |
20 |
|
|
dB |
|
Insertion Loss Uniformity |
The difference between the maximum and minimum of passband across all channels |
|
0.8 |
1.3 |
dB |
|
Directivity(Mux Only) |
Ratio of reflected power out of any channel(other than channel n)to power in from the input channel n |
40 |
|
|
dB |
|
Optical Return loss |
Input & output ports |
45 |
|
|
dB |
|
Polarization Dependent Loss in Clear Channel Band |
Worst-case value measured in ± 20GHz around ITU wavelength for each port. |
|
0.3 |
0.5 |
dB |
|
Polarization Mode Dispersion |
Maximum differential group delay within reference ITU wavelength |
|
|
1.0 |
ps |
|
Chromatic Dispersion |
Maximum change rate of group delay versus wavelength within reference ITU wavelength |
-20 |
|
+20 |
ps/nm |
|
Maximum Input Optical Power |
Maximum continuous optical power |
|
|
500 |
mW |

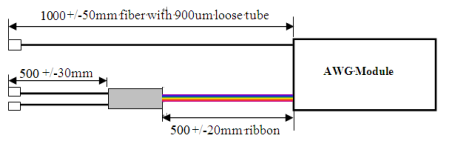

Mechanical Dimensions, Fiber Coding and Connector Specifications
|
imensions |
120 x 70 x 10.5 mm |
|
|
Fiber Type |
Common SMF-28e fiber with 900um loose tube/ SMF-28e 加900um松套管 Channels: SMF-28e Ribbons |
|
|
Fiber Length |
Common |
1000mm ± 50mm with 900um loose tube/输入纤长1000mm ± 50mm 900um套管 |
|
Channels |
Ribbon 500mm± 20 mm and Fan out 500mm± 30mm with 900um loose tube /输出带纤500mm± 20 mm，加分支器纤长500mm± 30mm |
|
|
Common |
Color |
white |
|
Ribbon Identification |
Label with ribbon number will be placed close to end-points |
|
|
Connector Options |
Common |
LC/UPC |
|
Channels |
LC/UPC |
|
|
Fiber Identification in Ribbon |
1：Blue；2：Orange；3：Green；4：Brown；5：Grey；6：White；7：Red；8：：Black；9：Yellow；10：Purple；11：Pink；12：Aqua |
|
|
Customized design available |
|
|
