FWDM 单器件 3 Ports 980/1550,1480/1550nm
Features
Wide Operating Wavelength Range
Low Insertion Loss
Ultra Flat Wide Passband
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Applications
WDM System
MAN
CATV System
FTTH Tri-Play System
Fiberoptic Instruments
Transmitters and Fiber lasers

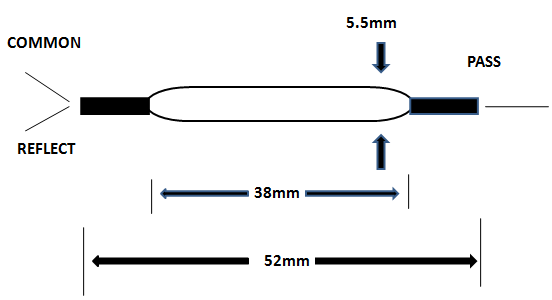

Dimension (Unit:mm)
Ordering Information HC－FWDM－A－B－C－D
|
A |
B |
C |
D |
|
Wavelength |
Fiber Type |
Fiber Length |
Connector |
|
15/14=1550 pass/1480 reflect 15/9=1550 pass/980 reflect
|
1=250 Bare fiber 2=900um loose tube |
1=1m 2=2m
|
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
|
Parameter |
FWDM 5/4 |
FWDM 61/5 |
FWDM 5/9 |
|
|
Pass Band Wavelength Range（nm） |
1530~1565 |
1600~1670 |
1525~1600 |
|
|
Reflect Band Wavelength Range（nm） |
1450~1490 |
1260~1580 |
965~1000 |
|
|
Insertion Loss（dB） |
Reflect Channel |
≤0.5 |
≤0.6 |
≤0.7 |
|
Pass Channel |
≤0.6 |
≤0.8 |
≤0.9 |
|
|
Insertion Loss Variation（dB） |
<0.3 |
|||
|
Isolation(dB) |
Reflect Channel |
>15 |
||
|
Pass Channel |
>25 |
>35 |
>30 |
|
|
Insertion Loss Temperature Sensitivity (dB/℃) |
<0.005 |
|||
|
Polarization Dependent Loss (dB) |
<0.1 |
|||
|
Polarization Mode Dispersion (ps) |
<0.1 |
|||
|
Directivity (dB) (Input to add, Output to drop, add to drop（dB） |
>50 |
|||
|
Return loss (dB) |
>50 |
|||
|
Maximum Power Handling (mW) |
500 |
|||
|
Operating Temperature (℃) |
-20~+70 |
|||
|
Storage Temperature (℃) |
-40~+85 |
|||
|
Fiber Type |
Corning SMF-28e fiber |
Corning HI 1060 fiber at Common & Reflection port, SMF-28e fiber at |
||
|
Package Dimension (mm) |
Φ5.5x34 (L38 for 900um Loose tube) |
|||
*1、Above specifications are for devices without connector.2、Specifications may change without notice.
