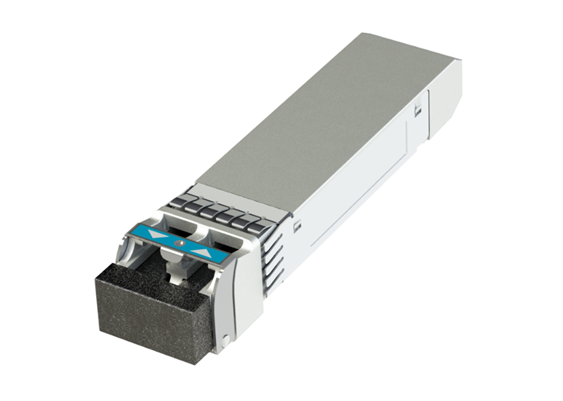

HC-AL541x 10Gb/s SFP+ 1550nm 40km Transceiver

Нажмите для загрузки

E-mail： lina@glhcoptical.com

Подробная информация о продукции

Features

Up to 11.3Gb/s data links

1550nm EML transmitter and PIN receiver

Up to 40km on 9/125µm SMF

Hot-pluggable SFP+ footprint

Duplex LC/UPC type pluggable optical interface

RoHS-10 compliant and lead-free

Support Digital Monitoring interface

Single +3.3V power supply

Compliant with SFF+MSA and SFF-8472

Metal enclosure, for lower EMI

Meet ESD requirements, resist 8KV direct contact voltage

Case operating temperature Commercial: 0 ~ +70oC Extended: -10 ~ +80oC Industrial: -40 ~ +85oC

Applications

10GBASE-ER/EW & 10G Ethernet

SDH STM64

Other Optical Links

Absolute Maximum Ratings

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter	Symbol	Min	Max	Unit	Notes
Storage Temperature	TS	-40	85	oC
Power Supply Voltage	VCC	-0.5	3.6	V
Relative Humidity (non-condensation)	RH	5	95	%
Damage Threshold	THd	5		dBm

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Operating Case Temperature	TOP	0		70	oC	commercial
		-10		80		extended
		-40		85		Industrial
Power Supply Voltage	VCC	3.135	3.3	3.465	V
Data Rate			10.3125		Gb/s
Control Input Voltage High		2		Vcc	V
Control Input Voltage Low		0		0.8	V
Link Distance (SMF)	D			40	km	9/125um

General Description

HC -AL541x SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of 1550nm EML Laser, PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

HC-AL541x transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users,when particular operating parameters are outside of a factory set normal range.

The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.

Pin Assignment and Pin Description

Figure1. Diagram of host board connector block pin numbers and names

Pin	Symbol	Name/Description	Notes
1	V EET	Transmitter Ground (Common with Receiver Ground)	1
2	T FAULT	Transmitter Fault.	2
3	T DIS	Transmitter Disable. Laser output disabled on high or open.	3
4	SDA	2-wire Serial Interface Data Line	4
5	SCL	2-wire Serial Interface Clock Line	4

6	MOD_ABS	Module Absent. Grounded within the module	4
7	RS0	Rate Select 0	5
8	LOS	Loss of Signal indication. Logic 0 indicates normal operation.	6
9	RS1	No connection required
10	V EER	Receiver Ground (Common with Transmitter Ground)	1
11	V EER	Receiver Ground (Common with Transmitter Ground)	1
12	RD-	Receiver Inverted DATA out. AC Coupled
13	RD+	Receiver Non-inverted DATA out. AC Coupled
14	V EER	Receiver Ground (Common with Transmitter Ground)	1
15	V CCR	Receiver Power Supply
16	V CCT	Transmitter Power Supply
17	V EET	Transmitter Ground (Common with Receiver Ground)	1
18	TD+	Transmitter Non-Inverted DATA in. AC Coupled.
19	TD-	Transmitter Inverted DATA in. AC Coupled.
20	V EET	Transmitter Ground (Common with Receiver Ground)	1

Notes:

1. Circuit ground is internally isolated from chassis ground.

2. TFAULT is an open collector/drain output, which should be pulled up with a 4.7kΩ-10kΩ resistor on the host board if intended for use. Pull up voltage should be between 2.0V to Vcc + 0.3V.A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm thresholds. A low output indicates normal operation. In the low state, the output is pulled to<0.8V.

3. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.

4. Should be pulled up with 4.7kΩ-10kΩ on host board to a voltage between 2.0V and 3.6V. MOD_ABS pulls line low to indicate module is plugged in.

5. Internally pulled down per SFF-8431 Rev 4.1.

6. LOS is open collector output. It should be pulled up with 4.7kΩ-10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

Electrical Characteristics

The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typ.	Max	Unit	Notes
Power Consumption	p			1.5	W
Supply Current	Icc			450	mA
Transmitter
Single-ended Input Voltage Tolerance	Vcc	-0.3		4.0	V
AC Common Mode Input Voltage Tolerance (RMS)		15			mV
Differential Input Voltage Swing	Vin,pp	120		820	mVpp
Differential Input Impedance	Zin	90	100	110	Ohm	1
Transmit Disable Assert Time				10	us
Transmit Disable Voltage	Vdis	Vcc-1.3		Vcc	V
Transmit Enable Voltage	Ven	Vee		Vee +0.8	V	2
Receiver
Differential Output Voltage Swing	Vout,pp	350		850	mVpp
Differential Output Impedance	Zout	90	100	110	Ohm	3
Data output rise/fall time	Tr/Tf	28			ps	4
LOS Assert Voltage	VlosH	Vcc-1.3		Vcc	V	5
LOS De-assert Voltage	VlosL	Vee		Vee +0.8	V	5
Power Supply Rejection	PSR	100			mVpp	6

Notes:

7. Connected directly to TX data input pins. AC coupled thereafter.

8. Or open circuit.

9. Input 100 ohms differential termination.

10. These are unfiltered 20-80% values.

11. Loss of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.

12. Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Transmitter
Center Wavelength	λ	1530	1550	1565	nm	1
Optical Spectral Width	∆λ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power	PAVG	0		4	dBm	2
Optical Extinction Ratio	ER	8.2			dB
Transmitter and Dispersion Penalty	TDP			3.2	dB
Transmitter OFF Output Power	POff			-30	dBm
Transmitter Eye Mask	Compliant with IEEE802.3ae
Receiver
Center Wavelength	λ	1270		1610	nm
Receiver Sensitivity (Average Power)	Sen.			-15.8	dBm	3
Input Saturation Power (overload)	Psat	0.5			dBm
LOS Assert	LOSA	-30			dBm
LOS De-assert	LOSD			-19	dBm
LOS Hysteresis	LOSH	0.5			dB

Notes:

13. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

14. Launched power (avg.) is power coupled into a single mode fiber with master connector (Before of Life).

15. Measured with Light source 1550nm, ER=8.2dB; BER≤1E-12 @10.3125Gbps, PRBS=2³¹-1 NRZ.

Digital Diagnostic Functions

The following digital diagnostic characteristics are defined over the Recommended Operating Environment unless otherwise specified. It is compliant to SFF-8472 Rev10.2 with internal calibration mode. For external calibration mode please contact our sales staff.

Parameter	Symbol	Min.	Max	Unit	Notes
Temperature monitor absolute error	DMI_ Temp	-3	3	℃	Over operating temp
Supply voltage monitor absolute error	DMI _VCC	-0.15	0.15	V	Full operating range
RX power monitor absolute error	DMI_RX	-3	3	dB
Bias current monitor	DMI_ bias	-10%	10%	mA
TX power monitor absolute error	DMI_TX	-3	3	dB

Mechanical Dimensions

Figure2. Mechanical Outline

Ordering Information

Part Number	Data Rate (Gb/s)	Wavelength (nm)	Transmission Distance(km)	Temperature (oC) (Operating Case)
HC-AL541C	10.3125	1550	40	0~70 commercial
HC-AL541E	10.3125	1550	40	-10~80 extended
HC -AL541I	10.3125	1550	40	-40~85 Industrial
