小型光开关 保偏2×2

Product Description
The Full 2x2 PM fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pen-ding op to-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.

Features
Unmatched Low Cost
Low Optical Distortions
Fail-Safe Latching
High Reliability
Epoxy-Free Optical Path

Applications
Channel Blocking
Configurable Add/Drop
System Monitoring
 Instrumentation

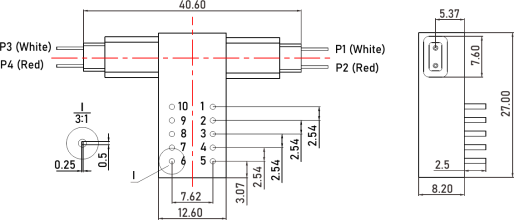

Mechanical Dimensions (Unit:mm)

Optical Route

Ordering Information: HC-PMFSW-2×2-A-B-C-D-E-F-G-H
