小型光开关 保偏1×2
Features
Unmatched Low Cost
Low insertion Loss
High Channel Isolation
High Stability, High Reliability
Epoxy-free on Optical Path
Latching or Non-latching
Applications
Optical Network
Protection/Restoration
Optical Singnal Routing
Configurable Optical Add/Drop
Transmitter and receiver protection
Network Test System
Optical Route

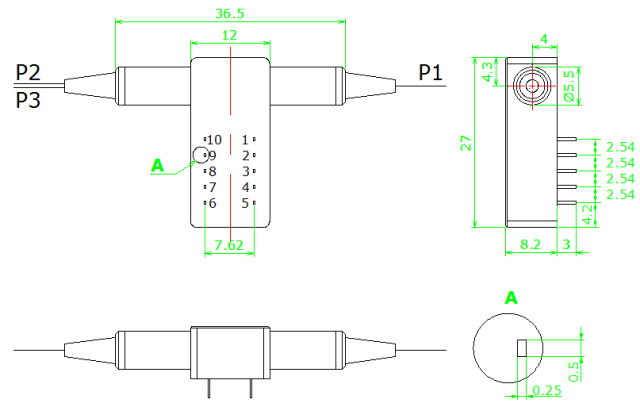

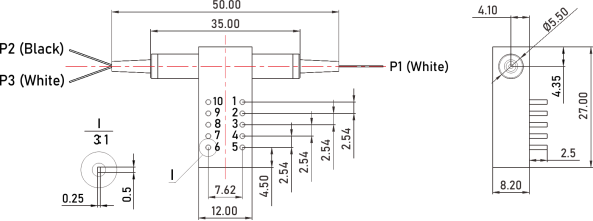

Mechanical Dimensions (Unit:mm)
Ordering Information: HC-PMFSW-1×2-A-B-C-D-E-F
|
|
A |
B |
C |
D |
E |
F |
|
Mode |
Wavelength |
Voltage Type |
Control Model |
Fiber Diameter |
Fiber Length |
Connector |
|
PM=PM |
13=1310nm 15=1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
25=250um 90=900um X=Others |
1=1m 2=1.5m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4= LC/PC X=Others |
|
Parameters |
|
1×2-SM |
|
Wavelength Range |
nm |
1260~1650 |
|
OperatingWavelength |
nm |
PM1310 OR PM1550 |
|
Insertion Loss |
dB |
Typ:0.7 Max:1.0 |
|
Return Loss |
dB |
≥50 |
|
Crosstalk |
dB |
≥55 |
|
ER |
dB |
≥18 |
|
WDL |
dB |
≤0.25 |
|
TDL |
dB |
≤0.25 |
|
Repeatability |
dB |
≤±0.02 |
|
Power supply |
v |
5 |
|
Lifetime |
Time |
≥107 |
|
Switch Time |
ms |
≤8 |
|
Transmission Power |
mW |
≤500 |
|
OperatingTemperature |
℃ |
-20~+70 |
|
Storage Temperature |
℃ |
-40~+85 |
|
Weight |
g |
16 |
|
Axis Alignment |
|
Double axis working |
|
Fiber type |
|
PM1550 fiber 900um |
|
Dimension |
mm |
(L)27.0×(W)12.0×(H)8.2 |

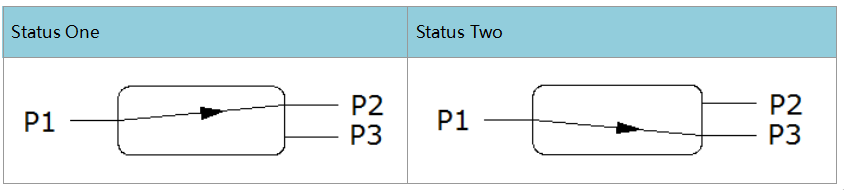

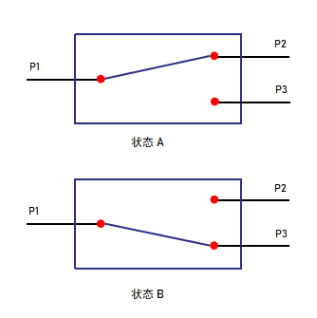

Pin Configurations
|
Type |
Pin |
Electric Drive |
Status sensor |
||||||
|
1×2 |
channel |
1 |
5 |
6 |
10 |
2-3 |
3-4 |
7-8 |
8-9 |
|
Latching |
P1-P2 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
P1-P3 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
|
Non-latching |
P1-P2 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
P1-P3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
Electric
|
Specifications |
Voltage |
Current |
Resistance |
|
5V latching |
4.5~5.5 |
36~44mA |
125Ω |
|
5V non-latching |
4.5~5.5 |
26~32mA |
175Ω |
|
3V latching |
2.7~3.3 |
54~66mA |
50Ω |
|
3V non-latching |
2.7~3.3 |
39~47mA |
70Ω |
