QXP29B4-10D 100Gb/s QSFP28 LR4 Transceiver

HC 100G QSFP28 LR4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4- Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single –mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface.



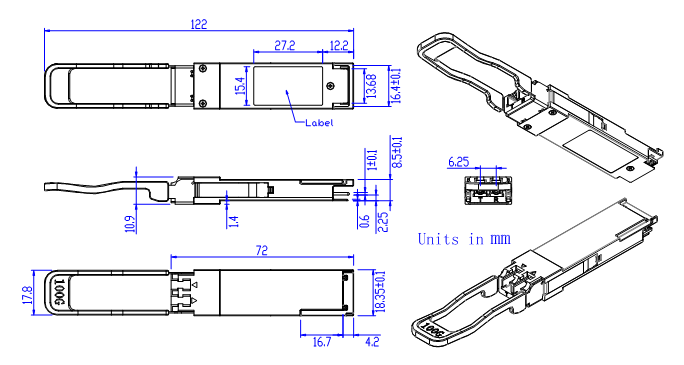

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3bm.





PRODUCT FEATURES
Compliant with 100GBASE-LR4
Support line rates from 103.125 Gbps to 111.81 Gbps
Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF
Digital Diagnostics Monitoring Interface
Duplex LC optical receptacle
No external reference clock
Electrically hot-pluggable
Compliant with QSFP28 MSA with LC connector
Case operating temperature range:0°C to 70°C
Power dissipation < 3.5 W





APPLICATIONS
100G Ethernet &100GBASE-LR4




STANDARD
Compliant to IEEE 802.3ba, IEEE 802.3bm and 100G LR4
Compliant to SFF-8436
RoHS Compliant.

性能参数

Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Storage Temperature

Ts

-40

-

85

ºC



Relative Humidity

RH

5

-

95

%



Power Supply Voltage

VCC

-0.3

-

4

V



Signal Input Voltage



Vcc-0.3

-

Vcc+0.3

V







Recommended Operating Conditions



Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Case Operating Temperature

Tcase

0

-

70

ºC

Without air flow

Power Supply Voltage

VCC

3.13

3.3

3.47

V



Power Supply Current

ICC

-



1060

mA



Data Rate

BR



25.78125



Gbps

Each channel

Transmission Distance

TD



-

10

km



Coupled fiber

Single mode fiber

9/125um SMF





Optical Characteristics



Parameter

Symbol

Min

Typ

Max

Unit

NOTE

Transmitter













Wavelength Assignment

λ0

1294.53

1295.56

1296.59

nm



λ1

1299.02

1300.05

1301.09

nm



λ2

1303.54

1304.58

1305.63

nm



λ3

1308.09

1309.14

1310.19

nm



Total Output. Power

POUT





10.5

dBm



Average Launch Power Per lane



-4.3



4.5

dBm



Spectral Width (-20dB)

σ





1

nm



SMSR



30





dB



Optical Extinction Ratio

ER

4





dB



Average launch Power off per lane

Poff





-30

dBm



RIN

RIN





-128

dB/Hz



Output Eye Mask definition

{X1X2X3Y1Y2Y3}

{0.250.40.450.250.280.4}



Receiver













Rx Sensitivity per lane

RSENS





-10.6

dBm

1

LOS De-Assert

LOSD

-30





dBm



LOS Assert

LOSA





-12

dBm



Input Saturation Power (Overload)

Psat





4.5

dBm



Receiver Reflectance

Rr





-26

dB



Notes:

  1. Measured with a PRBS 231-1 test pattern, @25.78Gb/s, BER<10-12 .





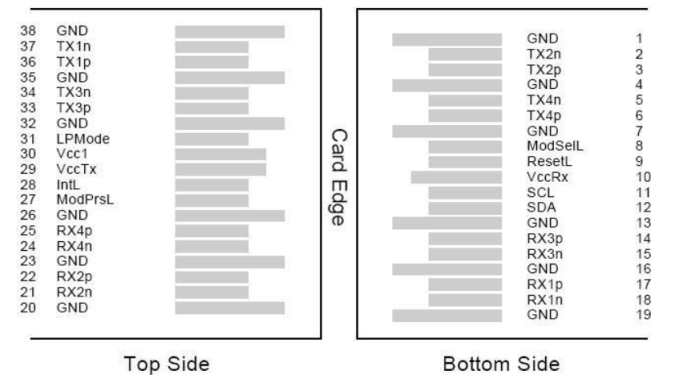

Electrical Characteristics



Parameter

Symbol

Min

Typ

Max

Unit

NOTE

Supply Voltage

Vcc

3.13

3.3

3.47

V



Supply Current

Icc





1060

mA



Transmitter













Input differential impedance

Rin



100



Ω

1

 Differential data input swing

Vin,pp

180



1000

mV



Transmit Disable Voltage

VD

Vcc–1.3



Vcc

V



Transmit Enable Voltage

VEN

Vee



Vee+ 0.8

V

2

Receiver













Differential data output swing

Vout,pp

300



850

mV

3

LOS Fault

VLOS fault

Vcc–1.3



VccHOST

V

4

LOS Normal

VLOS norm

Vee



Vee+0.8

V

4

Notes:

1. Connected directly to TX data input pins. AC coupled thereafter.

2. Or open circuit.

3. Into 100 ohms differential termination.

4. Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
