25G SFP28 DWDM 15km

Features
Up to 25.78Gb/s data links
DWDM EML transmitter and APD receiver
100 GHz ITU channel spacing with integrated wavelength locker
Up to 15km on 9/125um SMF
Hot-pluggable SFP28 footprint
Support Digital Monitoring interface
Duplex LC/UPC type pluggable optical interface
RoHS-10 compliant and lead-free
With CDR function
Single +3.3V power supply
Compliant with SFF+MSA and SFF-8472
Metal enclosure, for lower EMI
Meet ESD requirements, resist 8KV direct contact voltage
Case operating temperature
Commercial: 0 ~ +70℃
Extended: -10 ~ +80℃
Industrial: -40 ~ +85℃

Applications
High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
Inter Rack Connection
Other Optical Links

General Description

HXSD-FLxx15x SFP28 transceiver is designed for use in 25-Gigabit Ethernet links up to 15km over single mode fiber. The module consists of DWDM EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength.

The module optical connection is duplex LC and shall be compatible with SFP+ 28Gbps and backward compatible with legacy 10G SFP+ pluggable. The SFP28 DWDM LR module is a dual directional device with a transmitter and receiver plus a control management interface (2-wire interface) in the same physical package. 2-wire interface is used for serial ID, digital diagnostics and module control function.

The transmitter converts 25Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 25GBASE-LR standard. An open collector compatible Transmit Disable (Tx_Dis) is provided. Logic “1” or no connection on this pin will disable the laser from transmitting. Logic “0” on this pin provides normal operation. The transmitter has an internal automatic power control loop (APC) to ensure constant optical power output across supply voltage and temperature variations. An open collector compatible Transmit Fault (Tx_Fault) is provided. TX_Fault is module output contact that when high, indicates that the module transmitter has detected a fault condition related to laser operation or safety. The TX_Fault output contact is an open drain/collector and shall be pulled up to the Vcc_Host in the host with a resistor in the range 4.7-10 kΩ. TX_Disable is a module input contact. When TX_Disable is asserted high or left open, the SFP28 module transmitter output shall be turned off. This contact shall be pulled up to VccT with a 4.7 kΩ to 10 kΩ resistor.

The receiver converts 25Gbit/s serial optical data into serial PECL/CML electrical data. An open collector compatible Loss of Signal is provided. Rx_LOS when high indicates an optical signal level below that specified in the relevant standard. The Rx_LOS contact is an open drain/collector output and shall be pulled up to Vcc_Host in the host with a resistor in the range 4.7-10 kΩ, or with an active termination. Power supply filtering is recommended for both the transmitter and receiver. The Rx_LOS signal is intended as a preliminary indication to the system in which the SFP28 is installed that the received signal strength is below the specified range. Such an indication typically points to non-installed cables, broken cables, or a disabled, failing or a powered off transmitter at the far end of the cable.

Pin Assignment and Pin Description

Notes:

1. Module ground pins GND are isolated from the module case.

2. Shall be pulled up with 4.7K-10Kohms to a voltage between 3.15V and 3.47V on the host board.

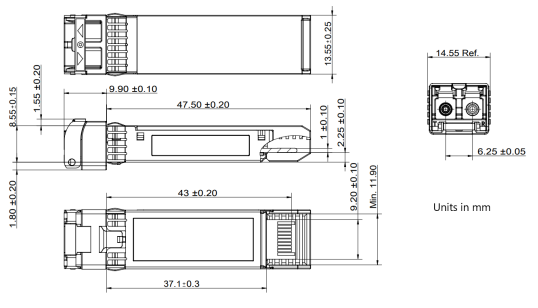

Mechanical Dimensions

Absolute Maximum Ratings

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Recommended Operating Conditions

Electrical Characteristics

The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Notes:

1. Connected directly to TX data input pins. AC coupled thereafter.

2. Or open circuit.

3. Input 100 ohms differential termination.

4. These are unfiltered 20-80% values.

5. Loss of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Notes:

1.λc refer to wavelength selection, and corresponds to approximately 0.8 nm.

2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

3. Measured with Light source 1528.77~1563.86nm, ER=6dB; BER =<10^-12 @ PRBS=2^31-1 NRZ.

 Digital Diagnostic Functions

The following digital diagnostic characteristics are defined over the Recommended Operating Environment unless otherwise specified. It is compliant to SFF-8472 Rev10.2 with internal calibration mode. For external calibration mode please contact our sales staff.
