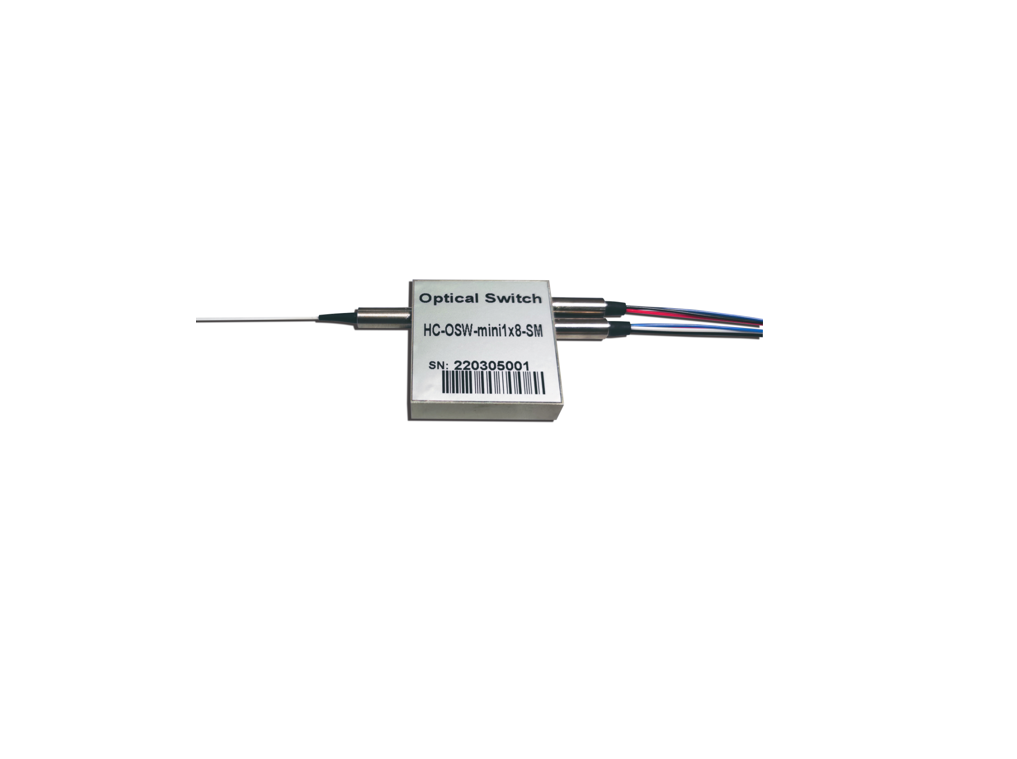

小型光开关MINI 1×8
Product Description
The Series 1x8 fiber optic switch connects optical channels by redirecting an in- coming optical signal into a selected output fiber. Latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated electrical position sensors, and the new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost. Electronic driver is available for this series of switches.
Features
Unmatched Low Cost
Low Optical Distortions
High Isolation
High Reliability
Epoxy-Free Optical Path
Applications
Channel Blocking
Configurable Add/Drop
System Monitoring
Instrumentation

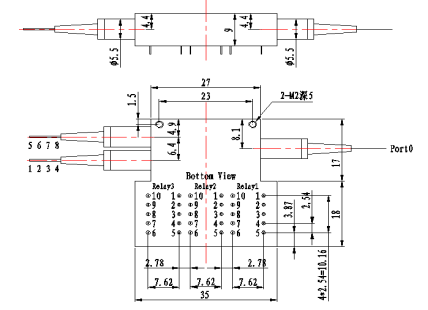

Mechanical Dimensions (Unit:mm)

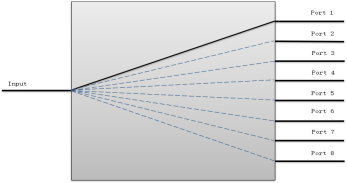

Optical Route
Ordering Information HC-OSW-mini1×8-A-B-C-D-E-F
|
A |
B |
C |
D |
E |
F |
|
Test Wavelength |
Type |
Fiber Type |
Fiber Dimension |
Fiber Length |
Connector |
|
850: 850nm |
3L: Latching |
SM: Single Mode |
025: Φ0.25mm |
05: 0.5m |
00: None |
|
1310: 1310nm |
3N: Non-latching |
M1:Multi-mode 50/125 |
09: Φ0.9mm |
10: 1.0m |
FP: FC/UPC |
|
1550: 1550nm |
5L: Latching |
M2:Multi-mode62.5/125 |
X: other |
15: 1.5m |
FA: FC/APC |
|
D: 1310/1550nm |
5N: Non-latching |
X: other |
|
X: other |
SP: SC/UPC |
|
X: other |
|
|
|
|
SA: SC/APC |
|
|
|
|
|
|
LP: LC/UPC |
|
|
|
|
|
|
LA: LC/APC |
|
|
|
|
|
|
X: other |
|
Parameters |
Specifications |
Unit |
|
Operating Wavelength |
1260~1620(SM)、850(MM) |
nm |
|
Insertion Loss |
≤1.2 |
dB |
|
Wavelength Dependent Loss |
≤0.35 |
|
|
Polarization Dependent Loss |
≤0.05 |
dB |
|
Temperature Dependent Loss |
≤0.25 |
dB |
|
Return Loss |
dB |
|
|
Cross Talk |
SM≥55 MM≥50 |
dB |
|
Switch Time |
≤8 |
ms |
|
Repeatability |
≤±0.02 |
dB |
|
Durability |
≥107 |
times |
|
Operating Voltage |
3 or 5 |
V |
|
Switch Type |
Non-Latching/Latching |
|
|
Operating Temperature |
－20~＋70 |
℃ |
|
Storage Temperature |
－40~＋85 |
℃ |
|
Optical Power |
≤500 |
mW |
|
Dimension |
35.0L×35.0W×9.0H ±0.2 |
mm |
Pin Configurations
Latching Type:
|
Type |
Optical Route |
Relay |
Electric Drive |
State Sensor |
||||||
|
1×8 |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
||
|
Latching |
Input- Port 1(Black) |
Relay1 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
|
Relay2 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Input- Port 2 (red) |
Relay1 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Input- Port 3(blue) |
Relay1 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
|
|
Relay2 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Input- Port 4(White) |
Relay1 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Input- Port 5(Black) |
Relay1 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Input- Port 6 (red) |
Relay1 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Input- Port 7(blue) |
Relay1 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Input- Port 8(White) |
Relay1 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
Non-Latching Type
|
Type |
Optical Route |
Relay |
Electric Drive |
State Sensor |
||||||
|
1×8 |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
||
|
Non- Latching |
Input- Port 1(Black) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Input- Port 2 (red) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Input- Port 3(blue) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Input- Port 4(White) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Input- Port 5(Black) |
Relay1 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Input- Port 6 (red) |
Relay1 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
|
Relay2 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Input- Port 7(blue) |
Relay1 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Input- Port 8(White) |
Relay1 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
|
Relay2 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
